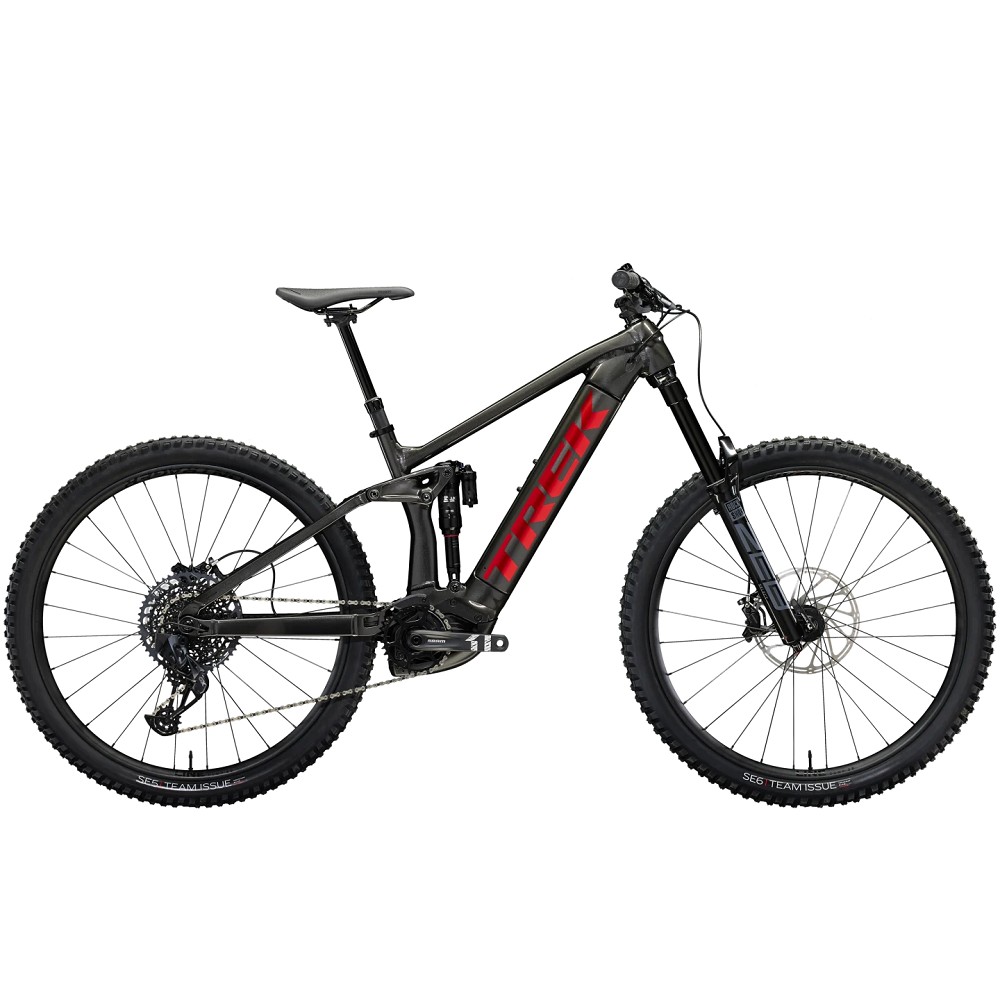

2023 Trek Rail 9 Gen 3 Electric Mountain Bike
- Brand:: Trek
- Product Code: 5279825
- Availability: In Stock
2023 Trek Rail 9 Gen 3 Electric Mountain Bike
The Rail 9 is our top-of-the-line alloy electric mountain bike with long-travel suspension. It features a suspension set-up and parts worthy of the gnarliest enduro runs, and the powerful Bosch drive system will get you back up the mountain faster than you ever thought possible. It comes decked out with a wireless SRAM AXS drivetrain for reliable shifting and an ultra-tidy cockpit.
| Frame | Size: S, Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel; Size: M, L, XL, Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
| Fork | RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
Shock |
RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm |
Stem |
Bontrager Elite, 35 mm, 0-degree, 45 mm length |
Handlebar |
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
Seatpost |
Size: S, Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length; Size: M, Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length; Size: L, XL, Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length |
Pedals |
VP-536 nylon platform |
Grips |
Bontrager XR Trail Elite, nylon lock-on |
Rear Derailleur |
SRAM GX Eagle AXS |
Crank | SRAM X1 1000, 34T, 165 mm length |
Shifters |
SRAM GX Eagle AXS, 12 speed |
Cassette |
SRAM Eagle XG-1275, 10-52, 12-speed |
Chain |
SRAM GX Eagle, 12-speed |
Brakes |
SRAM Code R 4-piston hydraulic disc |
Rims |
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29", Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29" |
Tires | Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"; Size: S, M, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
Disc Rotors | Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round-edge, 180mm; Size: S, M, L, XL, SRAM CentreLine, 6-bolt, round edge, 200 mm |
Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm |
Battery | Bosch PowerTube 625Wh, smart system |
Charger | Bosch standard 4A, 230V, smart system |
Weight | 23.6 kg |
