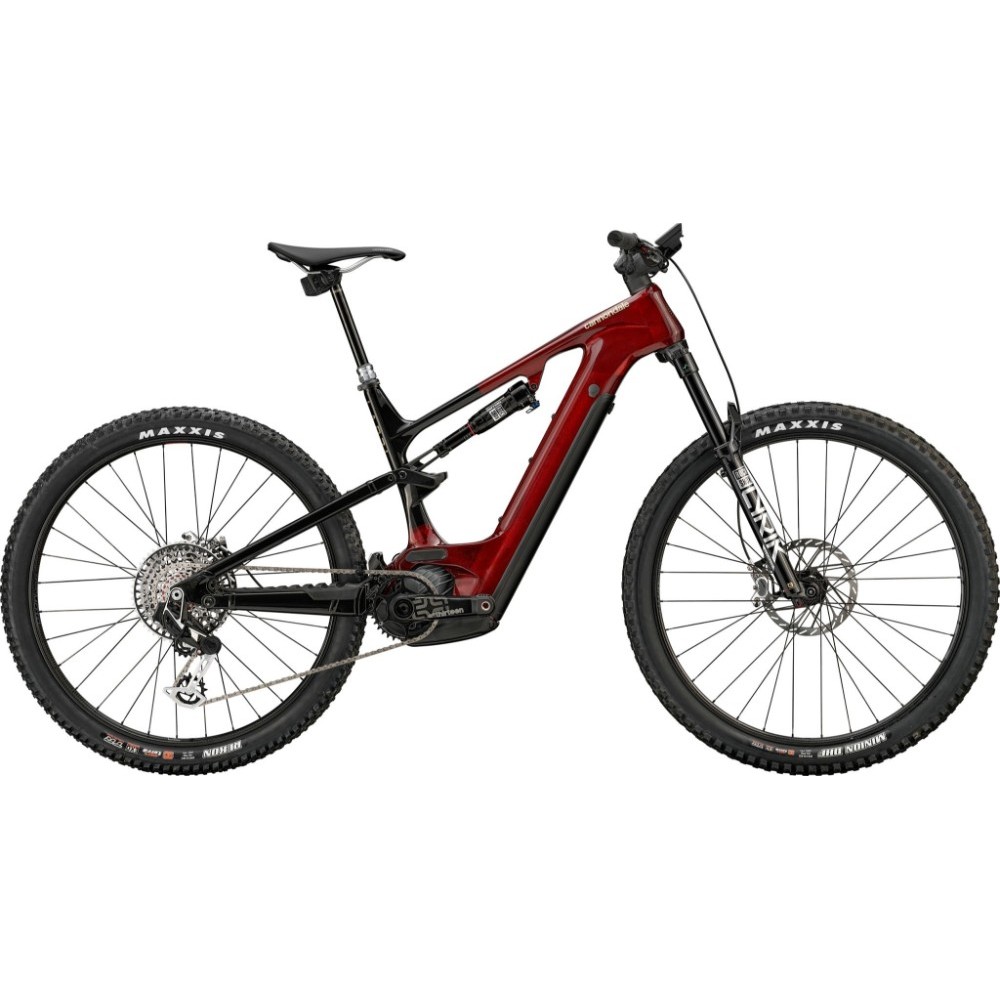

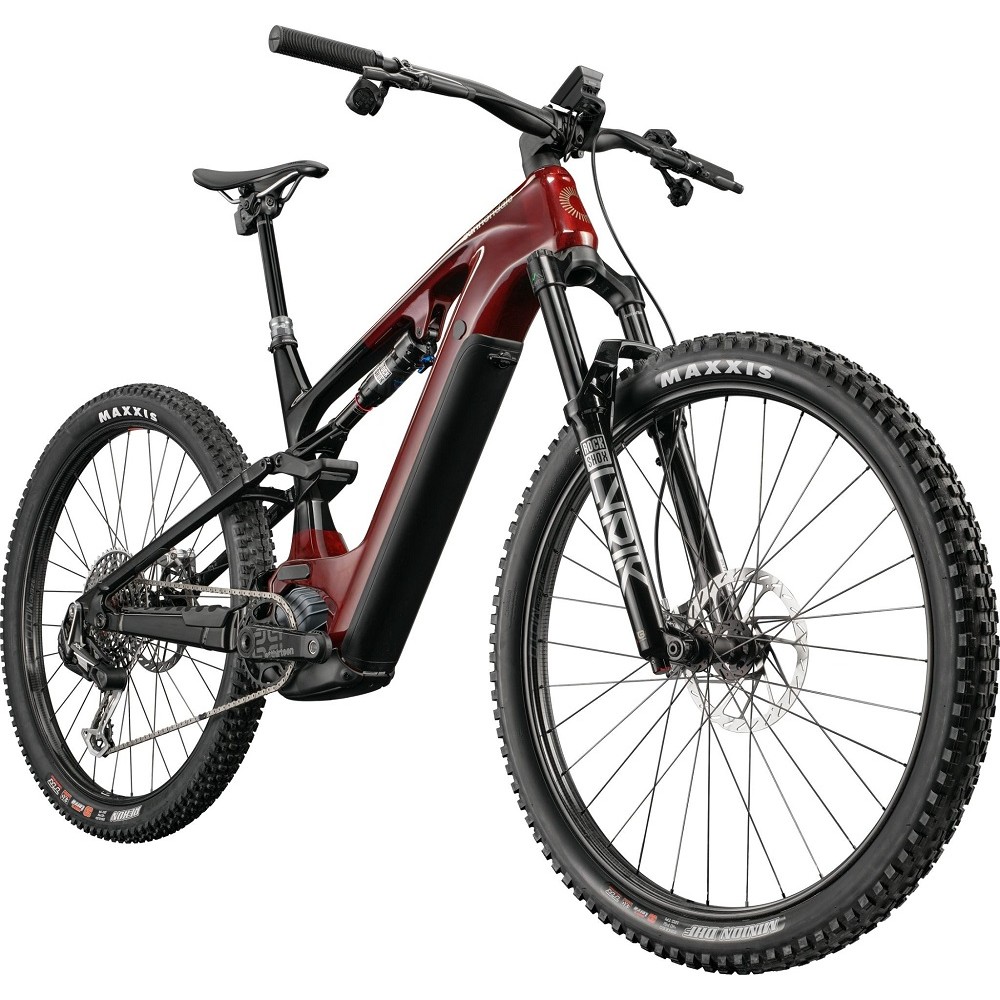

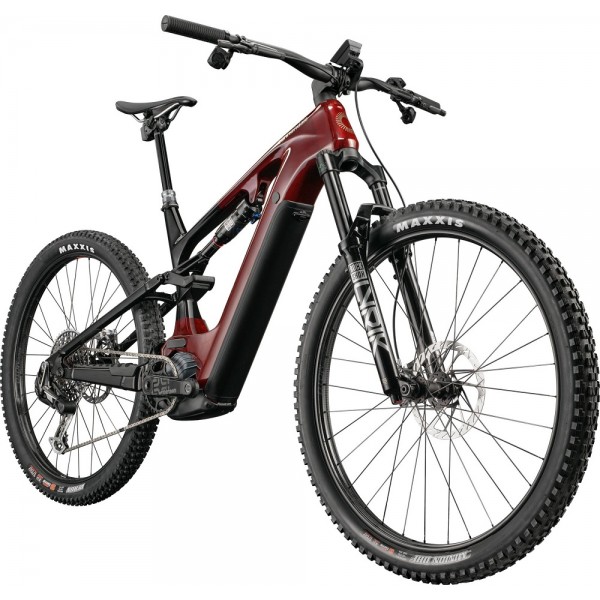

2024 Cannondale Moterra Neo LAB71 Electric Mountain Bike
- Brand:: Cannondale
- Product Code: 261032
- Availability: In Stock
2024 Cannondale Moterra Neo LAB71 Electric Mountain Bike
The Cannondale Moterra Neo LAB71 full-suspension EMTB is the embodiment of trail-focused excellence. Crafted with a carbon frame and boasting 150mm of Proportional Response tuned suspension, this e-bike delivers exceptional handling on technical terrain. Equipped with Bosch's fastest and most powerful CX Race motor and a massive 750Wh battery, it offers limitless performance and endurance for epic rides.
| Frame | Lab71 Edition Full Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle |
| Fork | RockShox Lyrik Ultimate, Charger 3, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset |
Rear Shock |
RockShox Deluxe Select +, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Headset | Acros, integrated, 1-1/8 to 1.8", sealed bearings |
Stem |
Cannondale, 3D Forged 6061 Alloy, 1-1/8", 35.0, internal cables |
Bars |
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Front Brake | SRAM Code Ultimate Stealth 4-piston hydraulic disc, 220/200mm rotors |
Rear Brake |
SRAM Code Ultimate Stealth 4-piston hydraulic disc, 220/200mm rotors |
Brake Lever |
SRAM Code Ultimate Stealth hydraulic disc, carbon levers |
Rear Mech |
SRAM XX Eagle AXS T-Type |
Shifters |
SRAM AXS T-Type Ultimate Pod Controller |
Speed |
12 |
Rims |
Zipp 3Zero Moto, carbon, 32h, 30mm inner width, 37.5mm outer width, 29" (27.5 rear, size small) |
Front Hub |
(F) Zipp ZM2, 15x110mm thru-axle / (R) Zipp ZM2, 12x148mm thru-axle |
Rear Hub |
(F) Zipp ZM2, 15x110mm thru-axle / (R) Zipp ZM2, 12x148mm thru-axle |
Front Tyre |
(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6", (size Small -29 x 27.5") EXO, tubeless ready |
Rear Tyre |
(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6", (size Small -29 x 27.5") EXO, tubeless ready |
Seat Post | SRAM Reverb AXS, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
Saddle | Cannondale Scoop Shallow Race, Ti rails |
Chainset | E*THIRTEEN E*Spec Race Carbon, 160mm, 34T |
| Chain | SRAM XX Eagle T-Type, Flattop |
Cassette | SRAM XX Eagle T-Type, 10-52, 12-speed |
Bottom Bracket | Integrated |
Pedals | Resin Platform |
Battery Size (WH) | Bosch PowerTube 750Wh |
Motor | Bosch Performance Line CX Race |
User Interface | Bosch Kiox 300 w/ LED remote |
