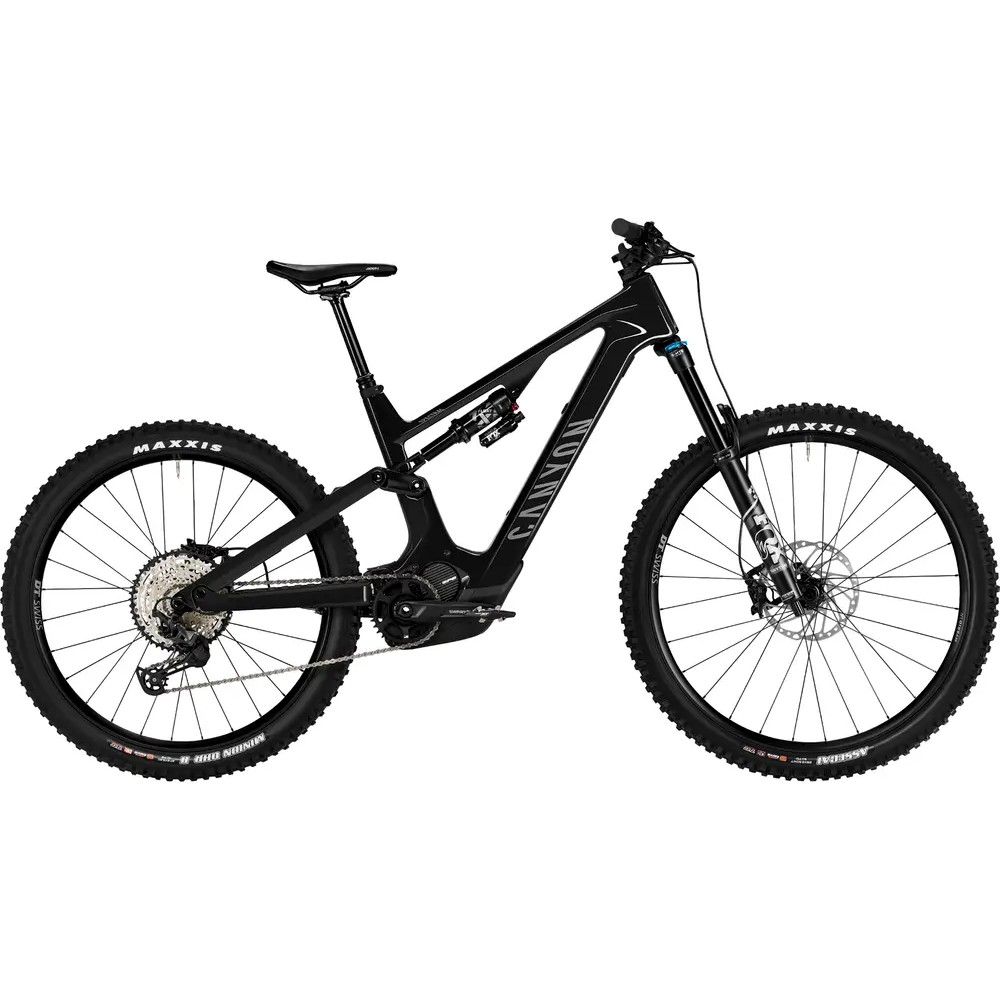

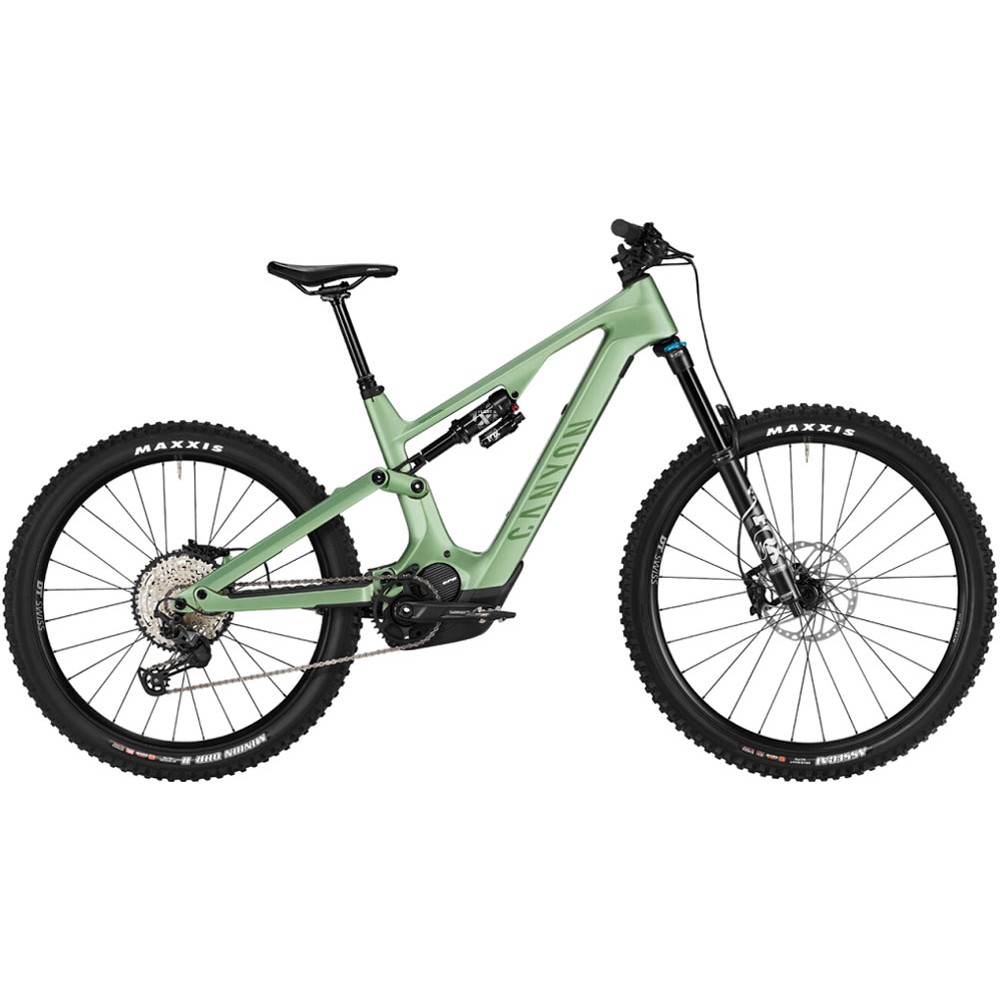

Canyon Spectral:ON CF, A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time., Axle dimension: 12x148 mm, Material: Carbon (CF)

FOX 36 Rhythm, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 4.33 lbs

Shock

Fox Float X Performance Evolution

Bottom Bracket

STEPS, press-fit

Stem

Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm

Handlebar

Canyon:ON HB0057 Riser bar, Canyon-developed E-MTB handlebar for top control levels on the trail., Clamping diameter: 35,0 mm, Width: 780 mm, Rise: 30 mm

Fizik Terra Aidon X5, Gender: Unisex, Weight: 0.58 lbs

Seatpost

Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.28 lbs

Grips

Canyon Lock-On

Rear Derailleur

Shimano SLX M7100, Cage length: long, Weight: 0.63 lbs

Crank

Shimano STEPS

Shifters

Shimano SLX M7100, Weight: 0.32 lbs

Cassette

Shimano SLX M7100, Number of sprockets: 12

Chain

Shimano CN-M6100

Chain Guide

Canyon Chainguide M091/M129

Brakes

Shimano SLX M7120

Rims

DT Swiss HLN350 15x110 30mm Centerlock, Rotor mount: Center Lock, Weight: 2.26 lbs | DT Swiss HLN350 12x142 30mm Centerlock, Rotor mount: Center Lock, Weight: 2.77 lbs

Tires

Maxxis Assegai, Width: 2.5", Weight: 2.25 lbs | Maxxis Minion DHR II 27,5" x 2.60 WT, Width: 2.6", Weight: 1.98 lbs

Disc Rotors

Shimano RT64, Size: 203 mm, Weight: 0.45 lbs | Shimano EM600 STEPS rear rotor, 203mm, Size: 203 mm, Weight: 0.45 lbs

Motor

Shimano EP801

Battery

Canyon BT0003-01 720Wh, Equipped on all Size S models and standard on Spectral:ON CF 7 and Torque:ON CF 8. | Canyon BT0004-01 900Wh, Standard battery for Sizes M-XL., 900Wh only compatible with frame sizes M-XL

Weight

24.5 kg
