2024 Marin Alpine Trail Carbon 2 Mountain Bike
- Brand:: Marin
- Product Code: 732402004
- Availability: In Stock

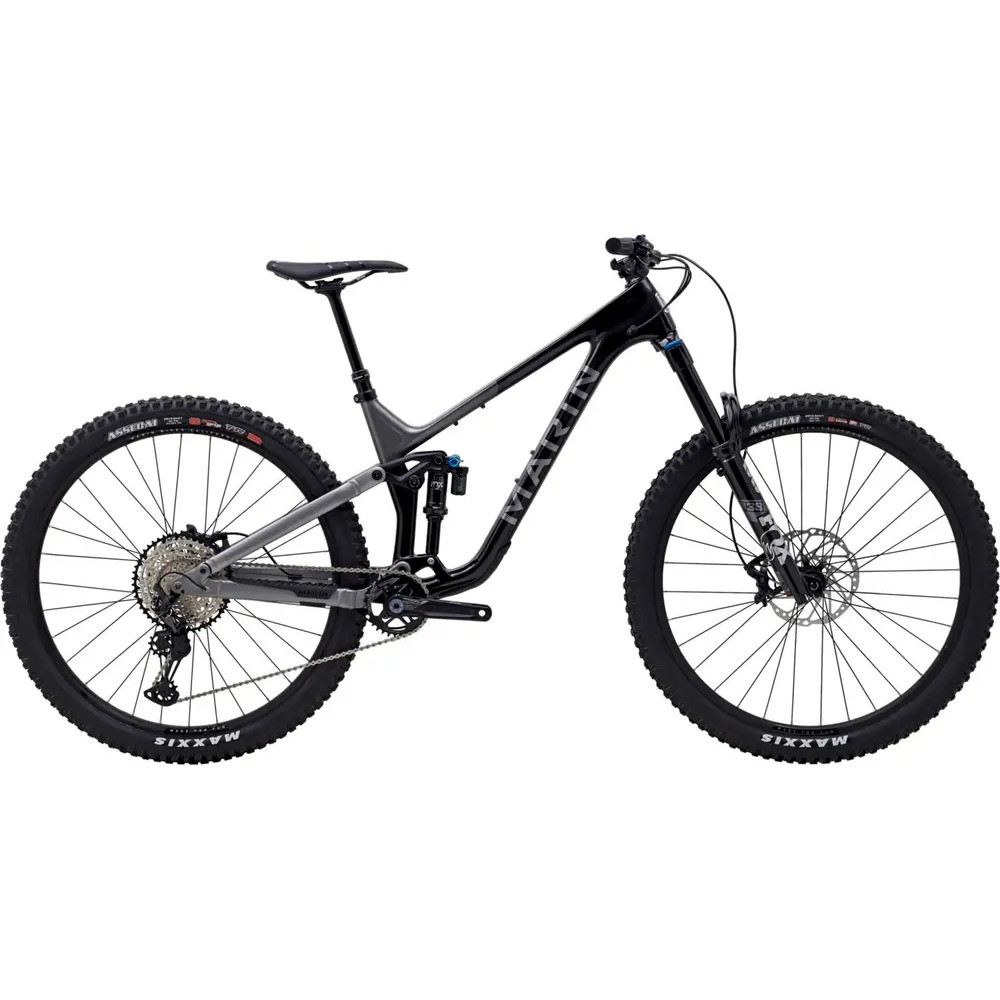

2024 Marin Alpine Trail Carbon 2 Mountain Bike
Marin's Alpine Trail Carbon 2 enduro/all-mountain bike has been incredibly popular since launch. 29" wheels matched with a great frame design featuring modern geometry (slack 63.5 ° head angle, steep 78 ° seat angle, short 430mm chain-stays and long reach) and long 160/150mm travel figures makes for a surprisingly versatile rig. The only thing left to do was make the switch to a super stiff, lightweight carbon frame version!
SPECIFICATION :
| Frame | Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Fork | Fox 38 Performance Elite, 160mm Travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender |
Shock |
Fox Float X, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount |
Bottom Bracket |
FSA MegaEvo BB, 73mm BSA Threaded |
Headset |
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Stem |
Marin CNC, 35mm Length, 35mm Bar Bore |
Handlebar |
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
Saddle |
Marin Trail Speed Concept Pro |
| Seatpost | X-Fusion Manic, 1x Shimano I-Spec EV Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm |
Pedals |
- |
Grips |
Marin Single Clamp Locking |
Rear Derailleur |
Shimano XT 12-Speed, SGS |
Front Derailleur |
- |
Crank |
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing |
Shifters |
Shimano SLX 12-Speed, I-Spec EV |
Cassette |
SunRace, 12-Speed, Microspline, 10-51T |
Chain |
KMC X-12 Silver and Black |
Brakes |
Shimano SLX, 4-Piston Hydraulic Disc, 203mm Rotor |
Brake Levers |
Shimano SLX Hydraulic, I-Spec EV |
Rims |
Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible |
Front Hub |
Shimano FH-TC500, 110x15mm |
Rear Hub |
Shimano FH-TC500MSB, 148x12mm, Disc, MicroSpline Freehub Body |
Tires |
Front: Maxxis Assegai 29x2.5”, MaxxTerra, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible |
