2024 Trek Domane AL 4 Gen 4 Road Bike
- Brand:: Trek
- Product Code: DOM406363244
- Availability: In Stock

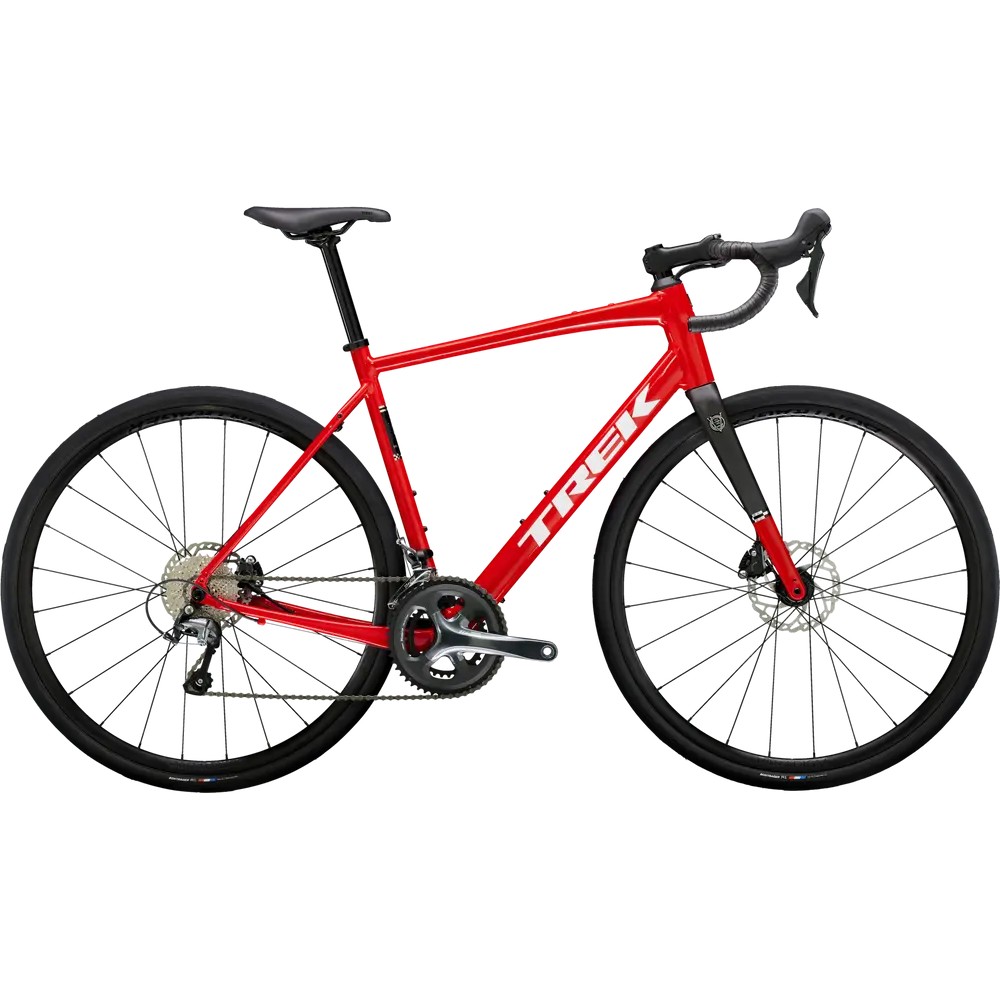

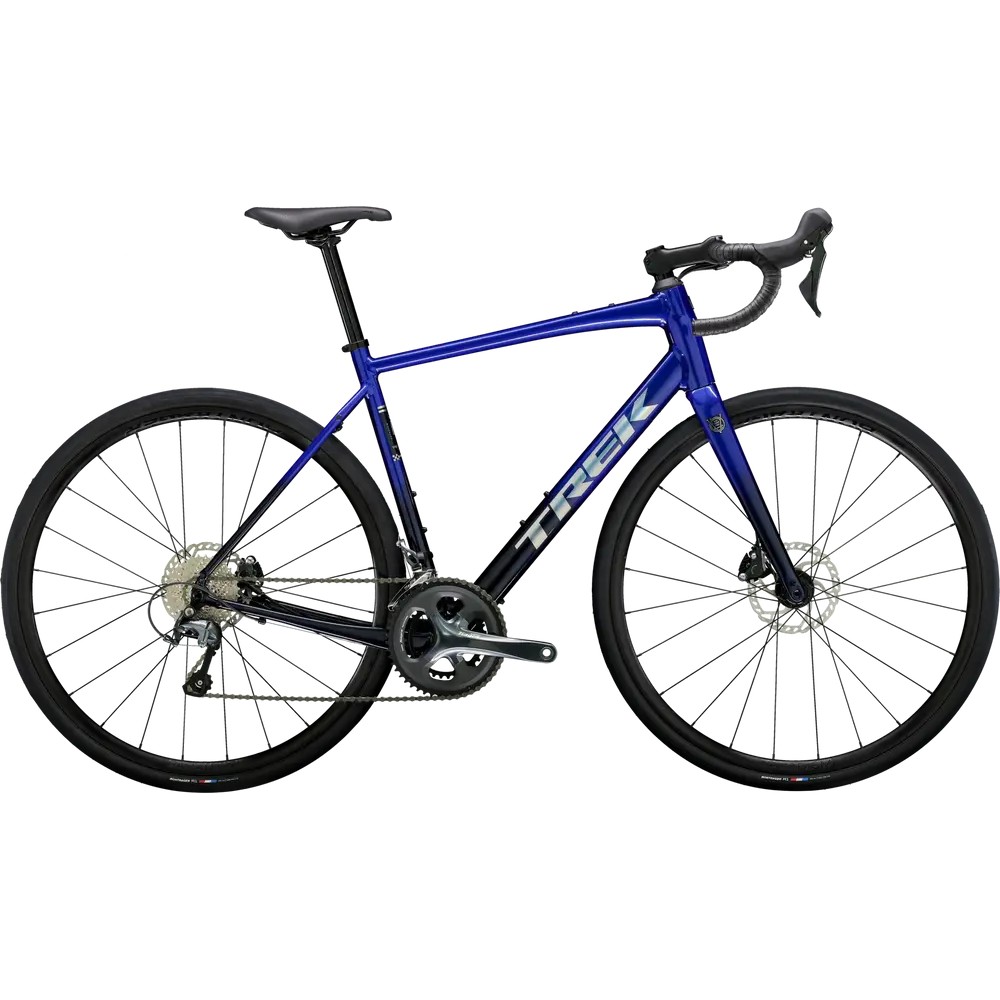

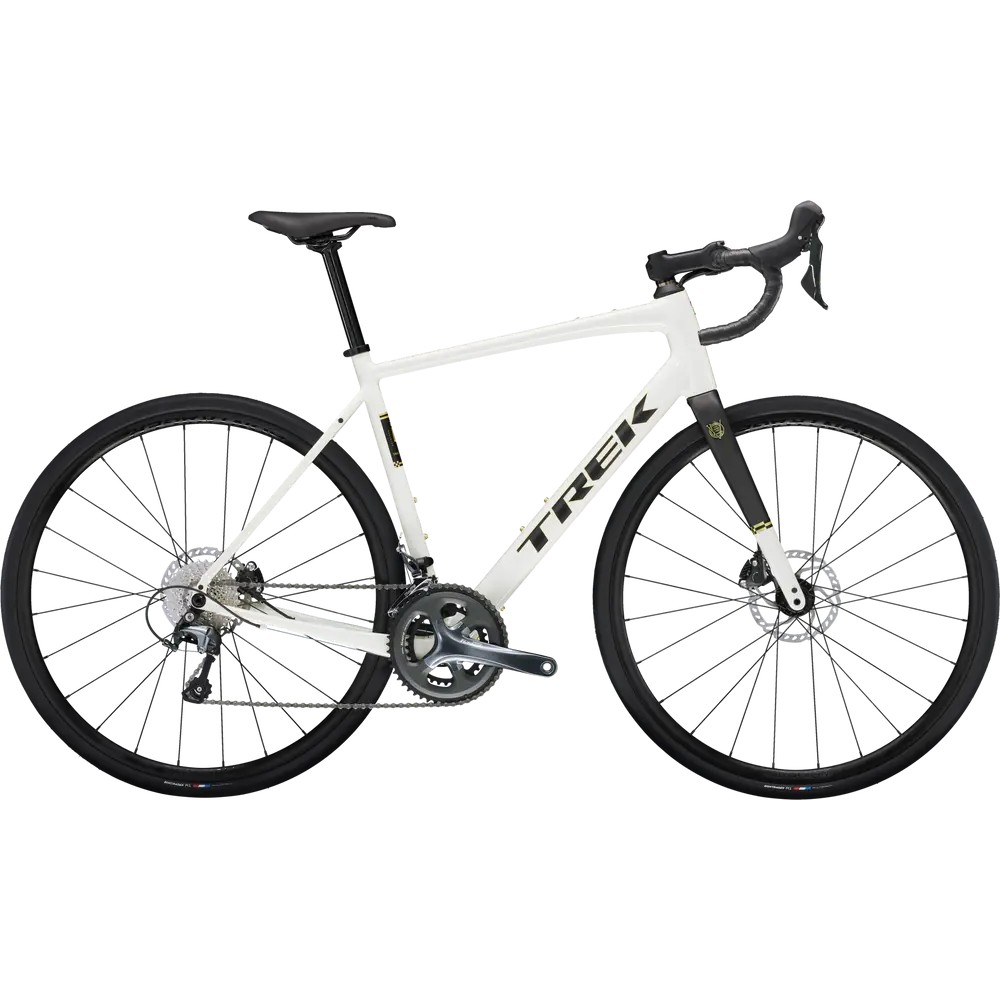

2024 Trek Domane AL 4 Gen 4 Road Bike
The Domane AL 4 is a fast and versatile racing bike that offers a perfect introduction to the world of racing cycling. With its Alpha Aluminum frame, generous tire clearance, Shimano Tiagra 10-speed drivetrain, top tube mounting options and comfortable all-day geometry, the Domane AL 4 is the perfect companion for relaxed tours, social group rides, fast commutes and even adventurous side trips Gravel routes.
SPECIFICATION :
| Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Bottom Bracket |
Shimano RS501 BSA |
Stem |
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
Handlebar |
Size: 44, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width; Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 49, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width |
Saddle |
Verse Short, steel rails, 145mm width |
Seatpost |
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
Rear Derailleur |
Shimano Tiagra 4700, long cage, 34T max cog |
Front Derailleur |
Shimano Tiagra 4700, 31.8mm clamp |
Crank |
Size: 44, Shimano Tiagra 4700, 50/34, 165mm length; Size: 49, 52, Shimano Tiagra 4700, 50/34, 170mm length; Size: 54, 56, Shimano Tiagra 4700, 50/34, 172.5mm length; Size: 58, 61, Shimano Tiagra 4700, 50/34, 175mm length |
Shifters |
Shimano Tiagra R4720, 10 speed |
Cassette | Shimano HG500, 11-32, 10 speed |
Chain |
Shimano Tiagra HG54, 10 speed |
Brakes |
Shimano Tiagra hydraulic disc, flat mount |
Rims |
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
Spokes |
14g stainless steel, black |
Front Hub |
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle |
| Rear Hub | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
Tires |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
Disc Rotors | Shimano RT66, 6-bolt, 160mm |
