2024 Trek Madone SL 6 Gen 7 Road Bike
- Brand:: Trek
- Product Code: MAD312368067
- Availability: In Stock

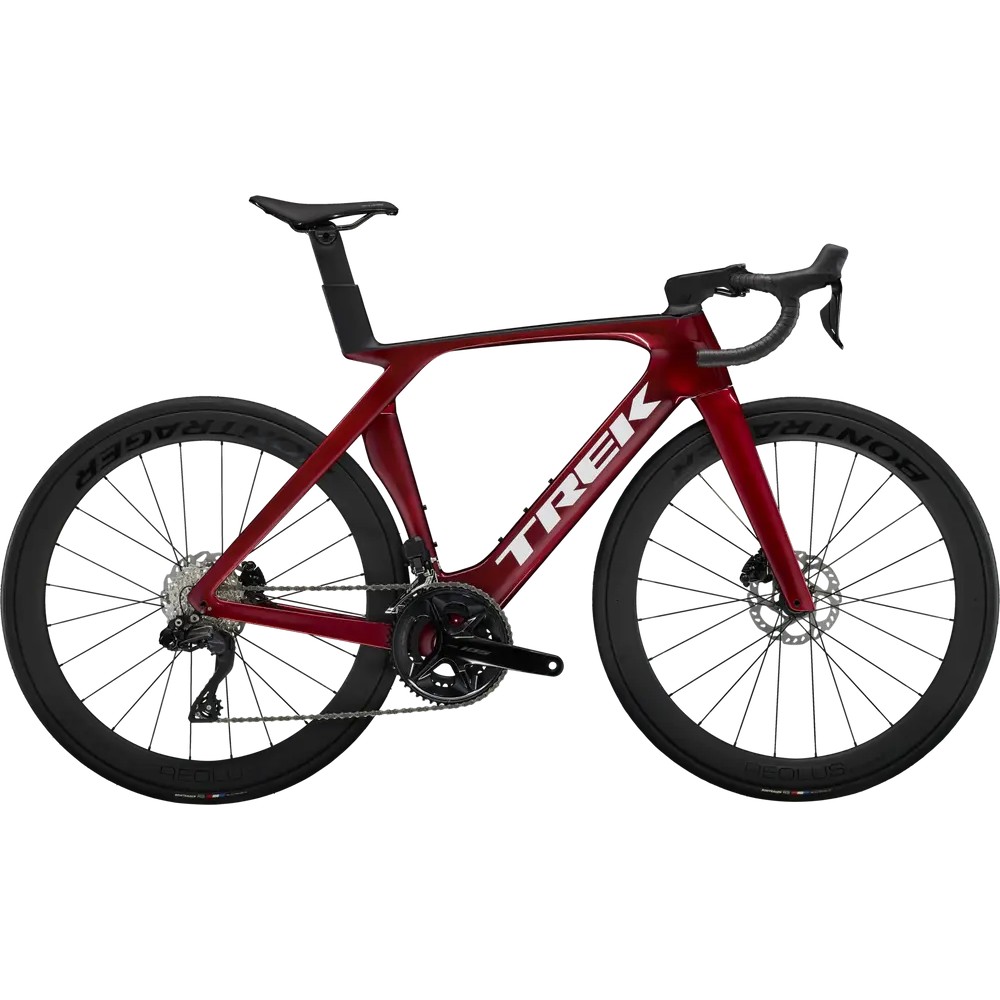

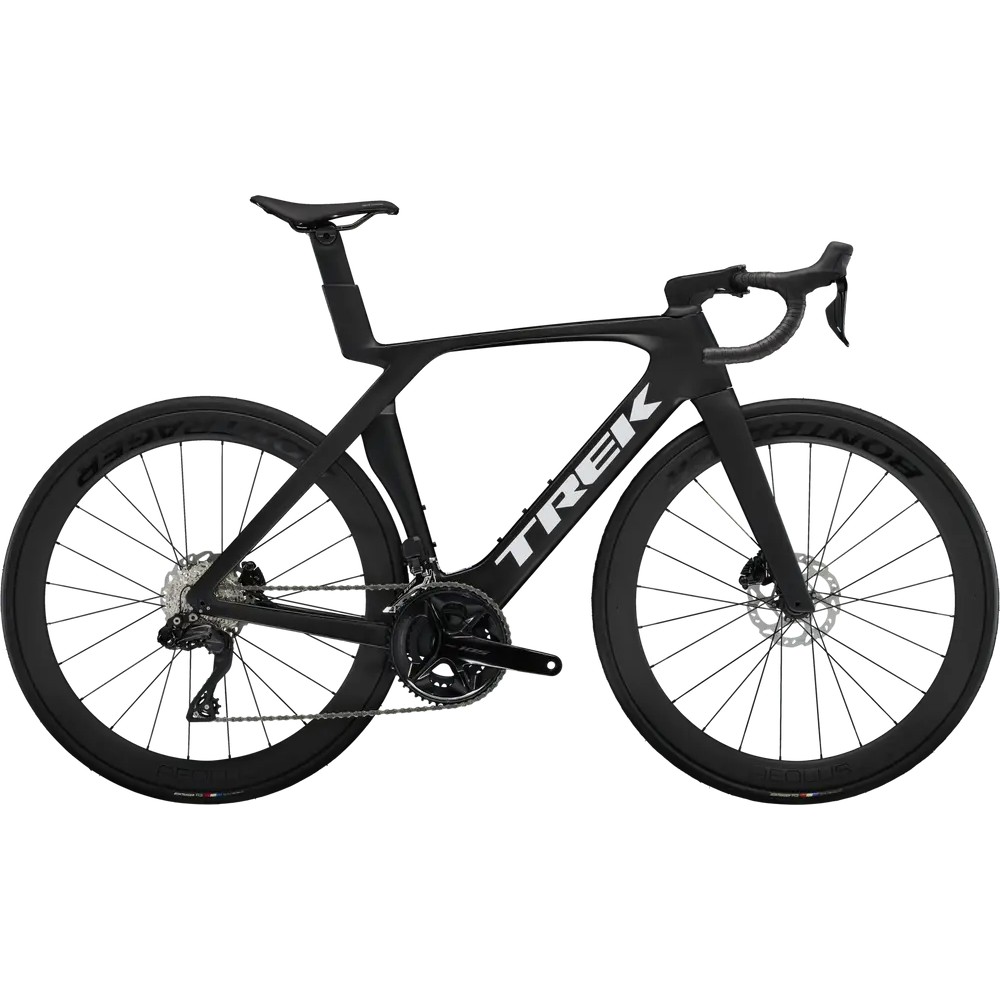

2024 Trek Madone SL 6 Gen 7 Road Bike
The Madone SL 6 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races. IsoFlow technology smooths out bumps in the road while lowering weight and offering an aerodynamic advantage over your competition, and a wealth of super-speedy features like Trek's newest Kammtail aero shapes, an economical Shimano 105 Di2 electronic drivetrain, carbon wheels and invisible hose routing make for a race machine that feels just as fast as it looks.
SPECIFICATION :
| Frame | 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
| Fork | Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
Bottom Bracket |
Praxis, T47 threaded, internal bearing |
Stem |
Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length |
Handlebar |
Size: 47, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm drop width; Size: 50, 52, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm drop width; Size: 54, 56, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 42cm width; Size: 58, 60, 62, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drop width |
Saddle |
Size: 47, 50, 52, Bontrager Aeolus Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Aeolus Comp, steel rails, 145mm width |
Seatpost |
Size: 47, 50, 52, 54, Madone aero carbon seatpost, 0mm offset, short length; Size: 56, 58, 60, 62, Madone aero carbon seatpost, 0mm offset, long length |
Rear Derailleur |
Shimano R7150 Di2, 36T max cog |
Front Derailleur |
Shimano 105 R7150 Di2, braze-on, down swing |
Crank |
Size: 47, Shimano 105 R7100, 50/34, 165mm length; Size: 50, 52, Shimano 105 R7100, 50/34, 170mm length; Size: 54, 56, Shimano 105 R7100, 50/34, 172.5mm length; Size: 58, 60, 62, Shimano 105 R7100, 50/34, 175mm length |
Shifters |
Shimano 105 R7170 Di2, 12 speed |
Cassette | Shimano 105 7101, 11-34, 12 speed |
Chain |
Shimano SLX M7100, 12 speed |
Brakes |
Shimano 105 hydraulic disc, flat mount |
Rims |
Front: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle |
Tires |
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm |
Disc Rotors | Shimano RT70, centerlock, 160mm |
