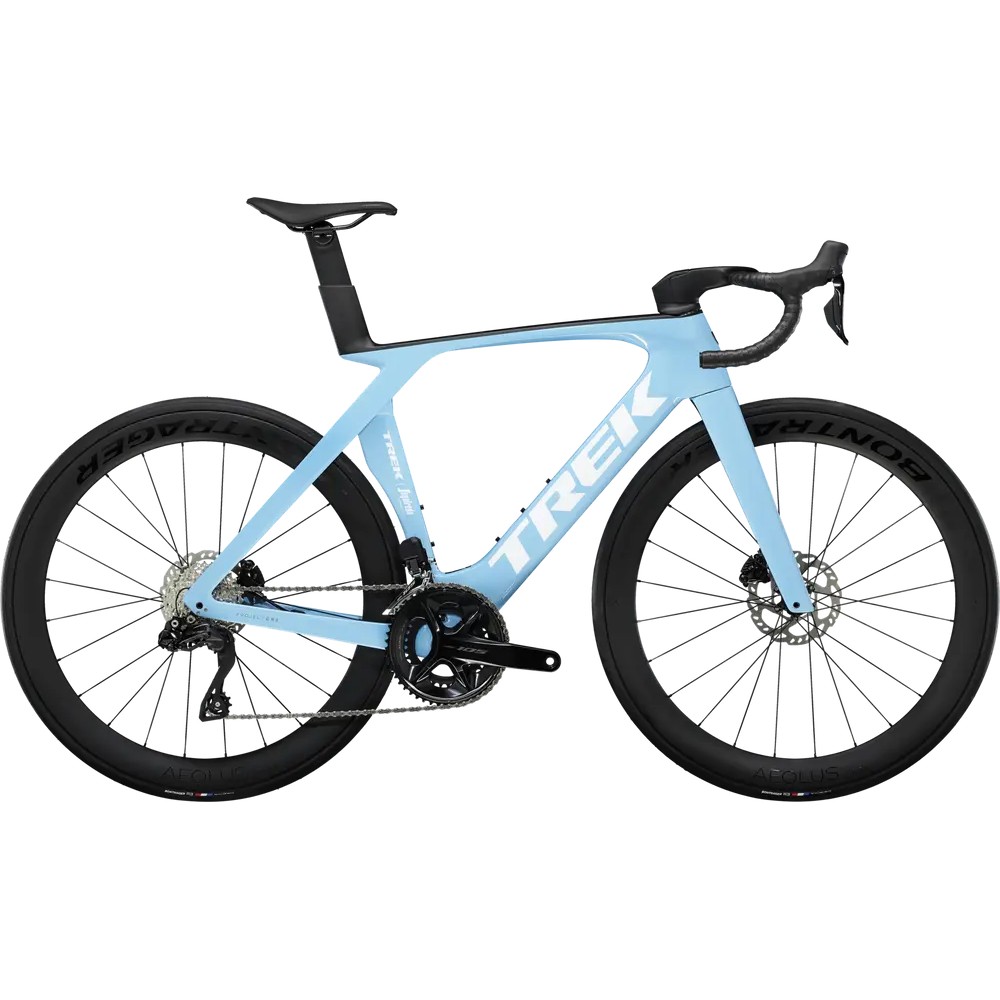

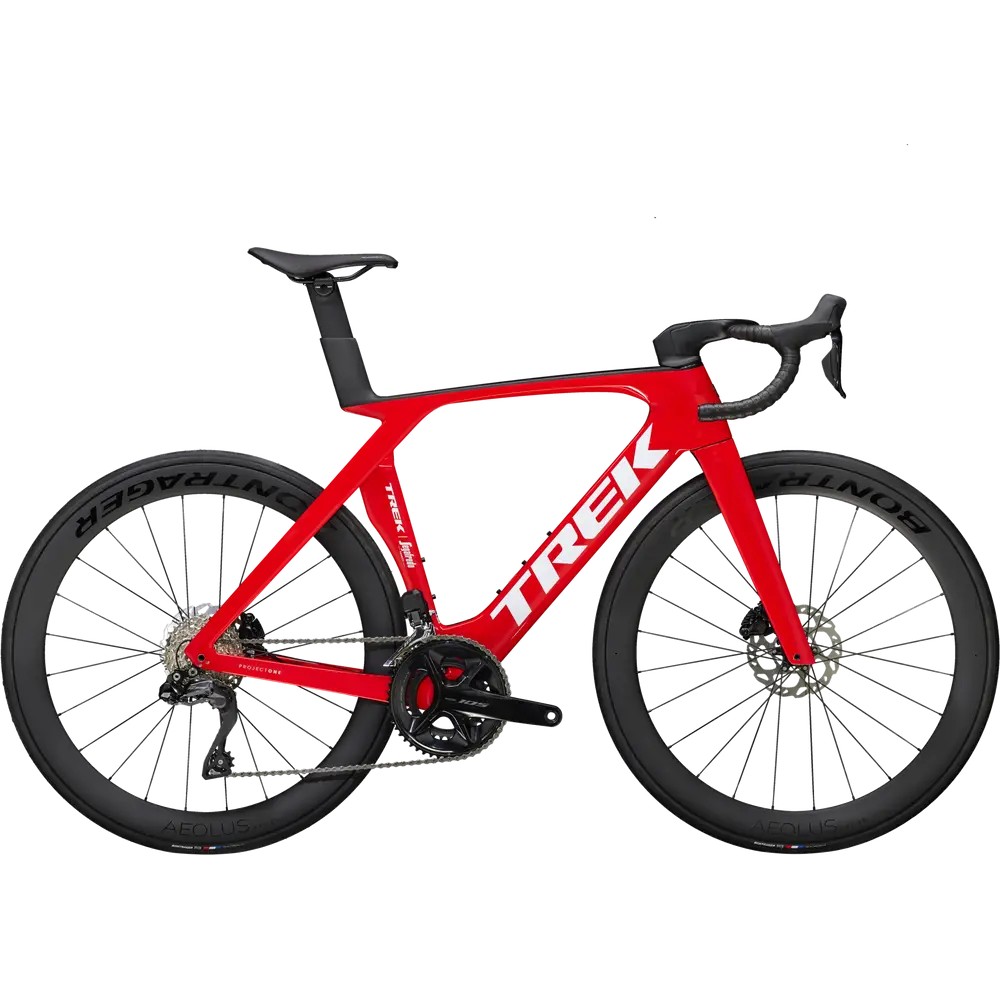

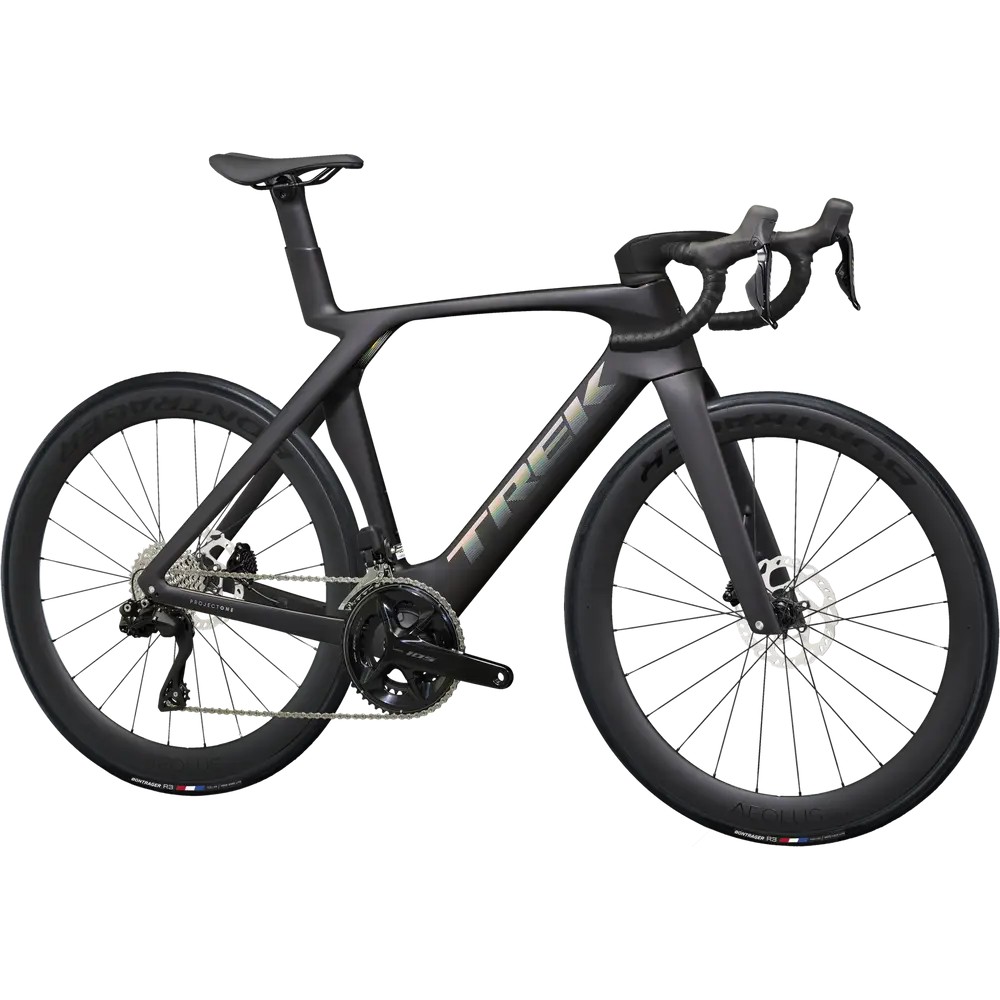

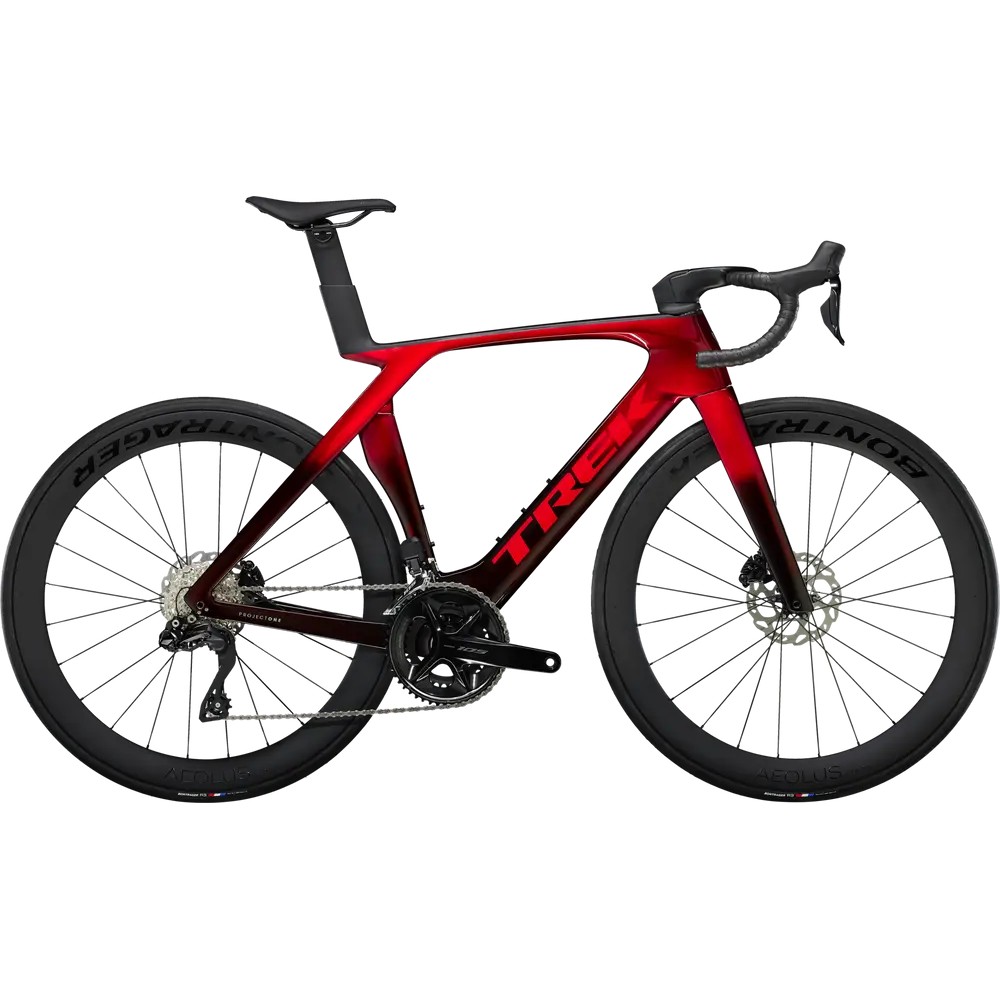

2024 Trek Madone SLR 6 Gen 7 Road Bike
- Brand:: Trek
- Product Code: 5282513
- Availability: In Stock
2024 Trek Madone SLR 6 Gen 7 Road Bike
The Madone SLR 6 is a road racing machine that's serious about speed from the second it hits the tarmac. It all starts with an 800 Series OCLV Carbon frame with exclusive IsoFlow technology that adds an aerodynamic advantage, cuts weight and smooths the road ahead, then is topped with workhorse components, like Shimano's wireless electronic 105 Di2 12-speed drivetrain to handle race day and shifting clean when the going gets tough. Plus, it features upgrades that matter, like carbon wheels with a deep rim for even more aerodynamic gains.
SPECIFICATION :
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
| Fork | Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
Bottom Bracket |
Praxis, T47 threaded, internal bearing |
Saddle |
Size: 47, 50, 52, Bontrager Aeolus P2 Elite, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Aeolus Elite, austenite rails, 145mm width |
Seatpost |
Size: 47, 50, 52, 54, Madone aero carbon seatpost, 0mm offset, short length; Size: 56, 58, 60, 62, Madone aero carbon seatpost, 0mm offset, long length |
Rear Derailleur |
Shimano R7150 Di2, 36T max cog |
Front Derailleur |
Shimano 105 R7150 Di2, braze-on, down swing |
Crank |
Size: 47, Shimano 105 R7100, 50/34, 165mm length; Size: 50, 52, Shimano 105 R7100, 50/34, 170mm length; Size: 54, 56, 58, Shimano 105 R7100, 50/34, 172.5mm length; Size: 60, 62, Shimano 105 R7100, 50/34, 175mm length |
Shifters |
Shimano 105 R7170 Di2, 12 speed |
Cassette | Shimano 105 7100, 11-34, 12 speed |
Chain |
Shimano SLX M7100, 12 speed |
Brakes |
Shimano 105 hydraulic disc, flat mount |
Rims |
Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle |
Tires |
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm |
Disc Rotors | Shimano RT70, centerlock, 160mm |
